The Role of a Toilet Wax Ring in Creating a Secure Seal Between the Toilet and Drain Flange
The wax ring under a toilet creates an essential barrier between the bowl and the drain pipe, stopping water from leaking out while keeping those nasty sewer smells from getting into the house. These rings are basically soft wax that gets squished flat when the toilet bolts are tightened, sealing up any little gaps where the floor might not be perfectly level or the toilet isn't sitting just right. Without this good seal, water can seep through and ruin floors over time, plus bad odors will start coming up from the drain. Most plumbers say a well placed wax ring should hold up for around two to three decades, though things like poor installation work or when the drain flange sits at the wrong height tend to make them fail much sooner than expected.
How Misplacement (On Toilet vs. Flange) Compromises the Seal and Causes Leaks
More than seventy percent of all toilet leaks actually come down to where the wax ring gets placed wrong. When someone puts the ring on the toilet horn rather than the actual flange, it causes uneven pressure distribution and leaves little spaces for water and gas to sneak through. The problem gets worse when the flange isn't level at all. Regular thickness rings measuring around three quarters to one inch simply won't work if there's a big gap between surfaces. Sometimes deeper sealing rings that go up to two inches thick become necessary. And don't forget about those wobbly toilets either. If the bolts holding everything together are loose, the whole thing rocks back and forth which eventually cracks the wax seal completely.
Common Signs of Wax Ring Failure: Floor Moisture, Odor, and Wobbling Toilet
Watch for these indicators of a compromised wax ring:
| Sign | Description |
|---|---|
| Floor Moisture | Persistent water pooling around the toilet base, often worsening after use |
| Sewer Odor | Musty smells indicating sewer gas leakage through broken seals |
| Wobbling Toilet | Toilet movement exceeding 1/8” horizontal shift, signaling failed adhesion |
Early detection prevents structural damage replace the ring immediately if any signs appear.

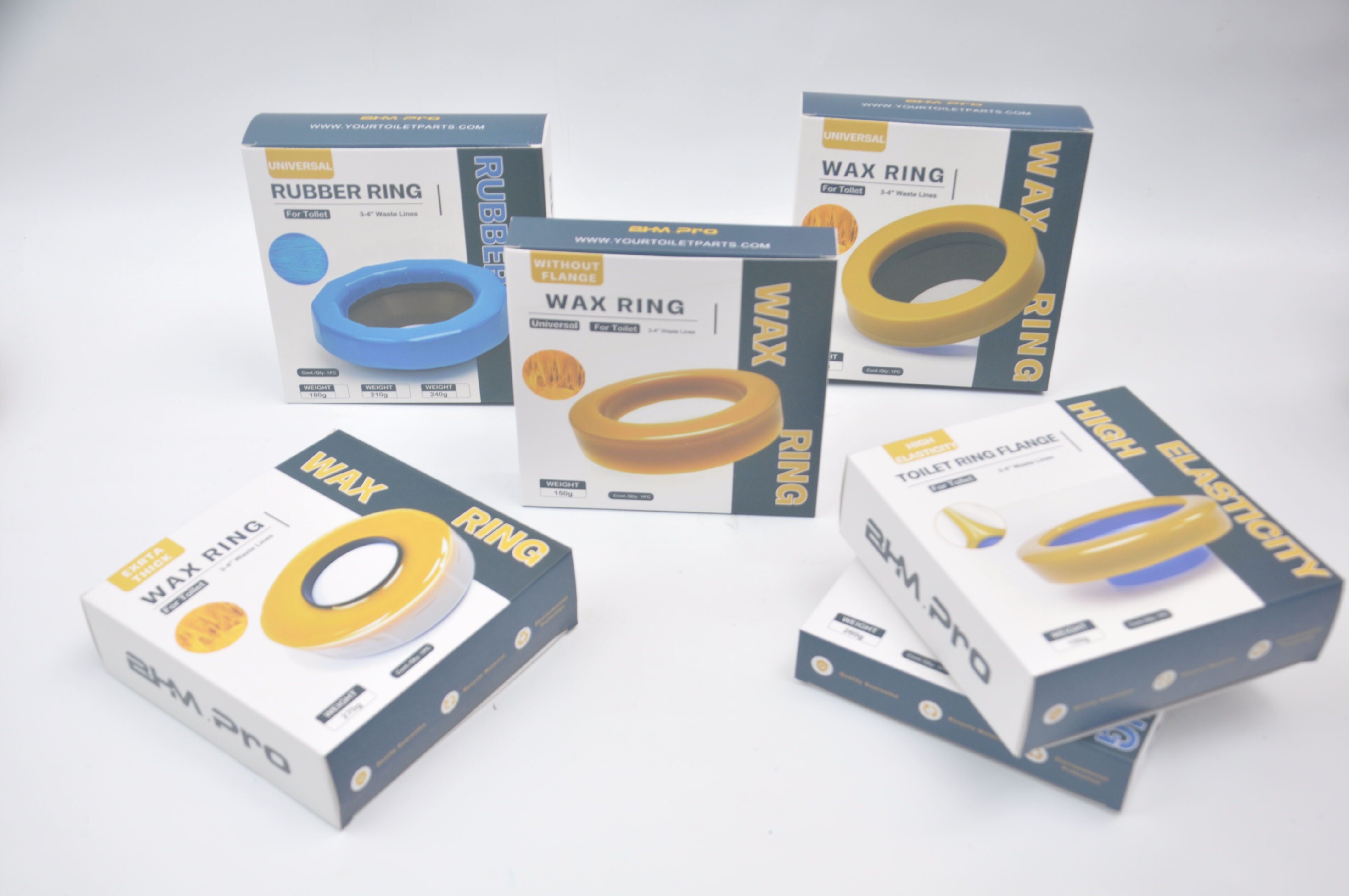

Comparing Types of Toilet Wax Rings: Standard, Deep Seal, and Neoprene Options
Standard vs. deep seal wax rings: matching thickness to flange height
Regular wax rings perform well when the toilet flange is about a quarter inch above the floor, which allows them to compress properly and form a good seal right away. When dealing with flanges that are set back into the floor or sitting at floor level, deeper seal options come into play. These special versions generally have around 30 to 50 percent more wax material, usually standing about 1.5 inches tall compared to the standard 1 inch, helping fill those tricky spaces between the toilet and the flange. According to recent research from plumbers in 2024, roughly two thirds of all wax ring problems stem from getting the thickness wrong for the situation. That's why taking time to check how high the flange actually sits relative to the surrounding floor makes such a difference in avoiding leaks down the road.
Neoprene collar wax rings: reusability and alignment benefits for DIYers
When wax seals are combined with neoprene gaskets, these mixed solutions allow toilets to be moved around 2 or 3 times without losing their seal, which makes them particularly helpful for people new to installation work. Regular wax tends to get squished out of shape forever once it's messed with, but those rubber rings hold their form even after several tries at positioning. That said, many seasoned plumbers stick with plain old wax when precision matters because nothing beats how it naturally finds level on its own.
Performance insights: leak resistance data across wax ring types
- Standard wax: Prevents 94% of leaks in flush-volume tests (GPI 2023)
- Deep seal wax: 97% effectiveness with recessed flanges
- Neoprene hybrids: 89% success rate initially, dropping to 82% after repositioning
- Wax-free rubber: 84% leak resistance but prone to drying cracks in arid climates
Are reusable wax free alternatives as reliable as traditional wax?
Urethane and rubber gaskets definitely cut out all that messy wax cleanup, but they need pretty flawless flange surfaces to perform as well as traditional options. When we look at temperature cycling data from actual bathroom environments, especially those with radiant floor heating systems, the numbers tell a story. Wax-free seals tend to break down three times quicker than their wax counterparts — around 12 months versus 36 months of service life. Home improvement enthusiasts who want something adjustable without too much hassle might find hybrid solutions work best for them. However, it's worth noting that local building regulations typically still require installation of standard wax rings for any new construction projects, so checking code requirements remains essential before making a choice.
Selected Right Toilet Wax Ring Kit for Proper Fit and Flange Alignment
Measuring Flange Height and Toilet Horn to Determine Optimal Wax Ring Thickness
Getting the right flange height measurement matters a lot when picking out a toilet wax ring that fits just right. Grab a tape measure and check how far it is from the bathroom floor up to where the drain flange sits. When the flange is level with the floor or actually sits lower than it, then we're looking at needing something thicker like those 90-95mm deep seal rings to make up for the gap. On the flip side, regular old 60-70mm rings do fine if the flange sticks up about a quarter inch above the floor surface. Don't forget to check the size of the toilet horn too because compatibility here counts for something. These days most toilets come with either 3 inch or 4 inch drains, so finding the matching ring size becomes pretty straightforward once measured properly.
Correct Placement: Centering the Wax Ring on the Flange for Maximum Sealing
The wax ring needs to sit right on top of the flange itself, not down on the bottom of the toilet bowl. This keeps everything lined up properly while putting the toilet in place. When setting the toilet down, press straight down firmly so the whole base gets compressed evenly against the flange. If dealing with those tricky angled or offset flanges, grab a wax ring that comes with a plastic funnel piece. These snap right into the drain opening and help guide things correctly. Watch out for mistakes people often make though. Don't let the toilet tilt sideways as you position it, don't adjust those bolts until after compression happens, and absolutely stay away from cranking those bolts super tight. Over tightening just messes up the wax seal and creates leaks later on.
Case Study: Common DIY Errors in Wax Ring Kit Selection and How to Avoid Them
According to a recent plumbing industry report from 2023, nearly two thirds of all toilet leaks happen because people pick the wrong wax ring for their setup. Take one case where someone installed a regular wax ring on what's called a recessed flange, and ended up with water constantly pooling on their bathroom floor. Fixing that mess meant taking the whole toilet apart, putting in a special 100mm deep seal ring that comes with its own spacer, then checking that it compressed evenly all around the base. Many plumbers see another common problem when folks try to mix old parts with new ones. The rule here? When reinstalling a toilet, get rid of everything old and start fresh with a complete wax ring kit that includes those little bolts and caps too. And if dealing with older floors that have several layers of tiles, stacking up those flange extenders makes more sense than just adding extra wax rings which tends to create weak spots in the seal eventually.
Modern Alternatives to Traditional Wax Rings and Industry Preferences
The evolution of toilet wax ring technology has introduced alternatives like gel seals and rubber gaskets, yet industry adoption remains divided. While innovation addresses installation challenges, professionals often weigh new options against decades of proven wax performance.
Wax free solutions: gel seals and rubber gaskets for cleaner installation
Gel-based seals and rubber gaskets provide a non-toxic, repositionable alternative to traditional wax. These options eliminate messy cleanup and maintain flexibility in temperature-controlled environments. However, a 2023 Plumbing Materials Study found wax-free seals required 23% more adjustments during installation to prevent compression gaps compared to standard wax rings.
Pros and cons of urethane-based and dual seal reusable toilet gaskets
Urethane-based gaskets offer durability and reusability, with some models rated for 10+ installations. Dual-seal designs add leak redundancy through separate water and odor barriers. Key tradeoffs include:
- Pro: Withstands floor settling better than wax
- Con: 37% higher failure rate in extreme temperature swings (−45°F or 85°F)
- Pro: Allows toilet repositioning without seal replacement
- Con: Requires flange surfaces 80% smoother than wax-compatible standards
Why many professional plumbers still trust wax despite newer innovations
According to a recent National Plumbing Association survey from 2024, around 72% of licensed plumbers still go with traditional wax rings for their jobs. Most point to how wax naturally levels itself out, which helps when dealing with those tricky flange misalignments that happen all too often on site. What makes wax really stand out is its dependable performance no matter what kind of situation it gets installed in. When compressed correctly, failure rates stay under 4%, something that many of these newer alternatives just can't seem to match after years in actual plumbing work. Plumbers have seen plenty of failed installs with alternative products, so they tend to stick with what works reliably day after day.
Best Practices for Installing a Toilet Wax Ring Without Leaks
Step by Step Guide to Installing a Wax Ring With No Air Pockets or Misalignment
The wax ring needs to sit right on the flange, not against the bottom of the toilet bowl itself. Otherwise we end up with those annoying compression issues later on. When setting the toilet down, go slow and keep it going straight down. Don't twist it at all because rocking back and forth just creates little gaps where water can escape. Industry folks say around three out of four seal failures happen when things aren't centered properly. And honestly, having someone else hold the other side really helps keep everything lined up correctly while getting the toilet into position. Two sets of hands make this part much easier to handle without messing up the alignment.
Proper Bolt Tightening Technique to Ensure Even Compression and Prevent Damage
Start by tightening those bolts by hand so everything can settle naturally first. After that, grab your wrench and work back and forth between both sides, giving each bolt a quarter turn at a time until they feel snug but not overly tight. If you go too far, the flange might actually bend, which is definitely not good. On the flip side, if things are too loose, there will be gaps forming. To check if everything sits right, take any old business card (the thinner ones work better) and run it around the bottom of the toilet. It should encounter pretty much the same amount of friction all the way around when pushed against the floor.
Post Installation Checks: Verifying Seal Integrity and Preventing Water Seepage
Give the seal a quick test right away by running the toilet 3 or 4 times and checking if any water appears on the floor. Lay down some dry paper towels around the bottom area overnight. If they get wet in the morning, that means something isn't lined up properly. To give extra security against leaks, run a bead of silicone caulk along the front edges and sides of the unit. Important tip though leave the back side without sealing so we can spot any potential problems later on. Most folks find it wise to wait at least a day before using the toilet normally again. This gives time for whatever wax was used to settle properly against the flange connection point underneath.
